VX 12.2Q-WH

The VX 12.2Q-WH PowerDual Full Range Loudspeaker boasts an exceptional performance-to-size ratio, and can also be configured for bi-amp operation. VX 12.2Q-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12.2Q-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

PowerDual Driver

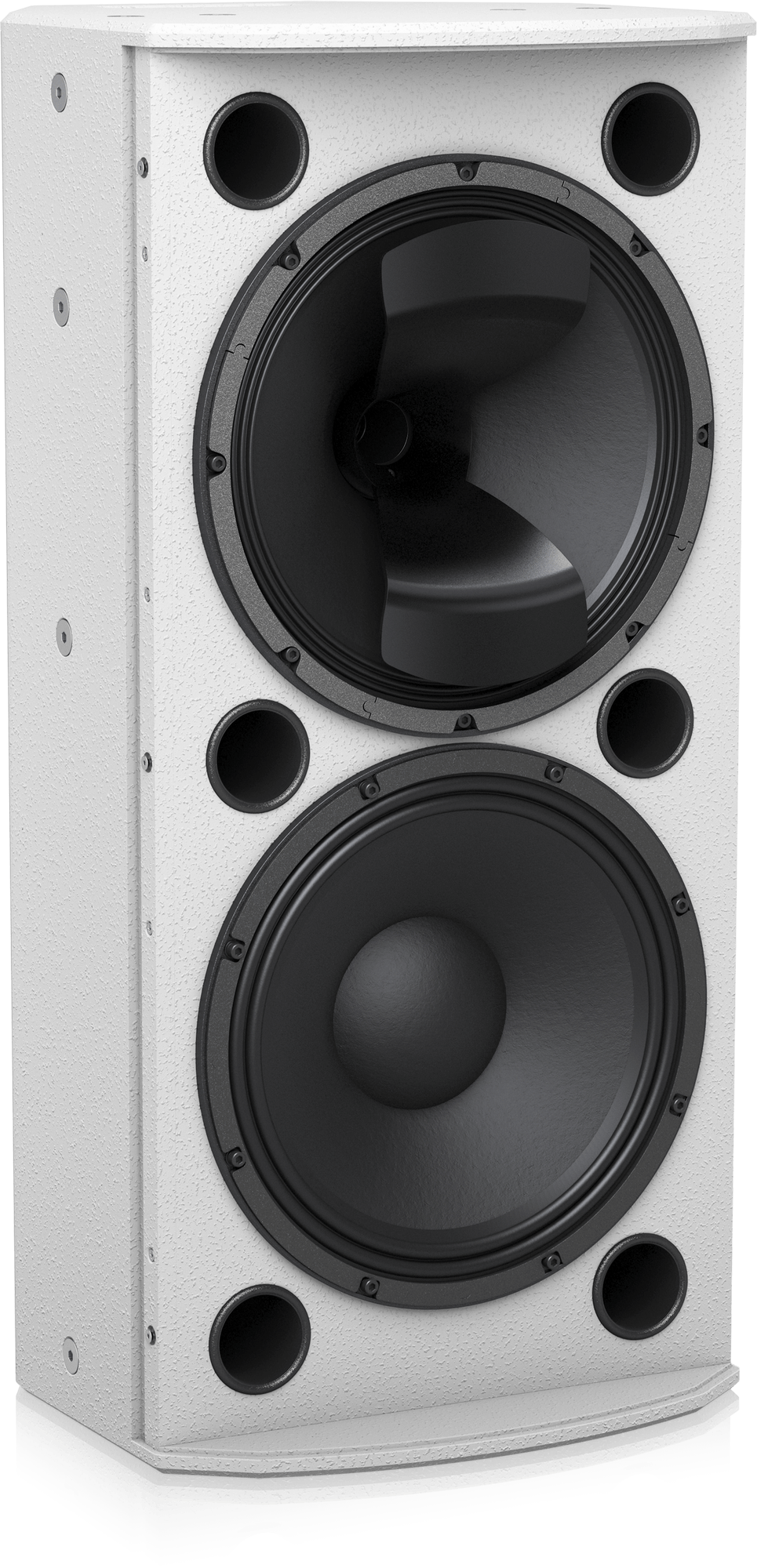

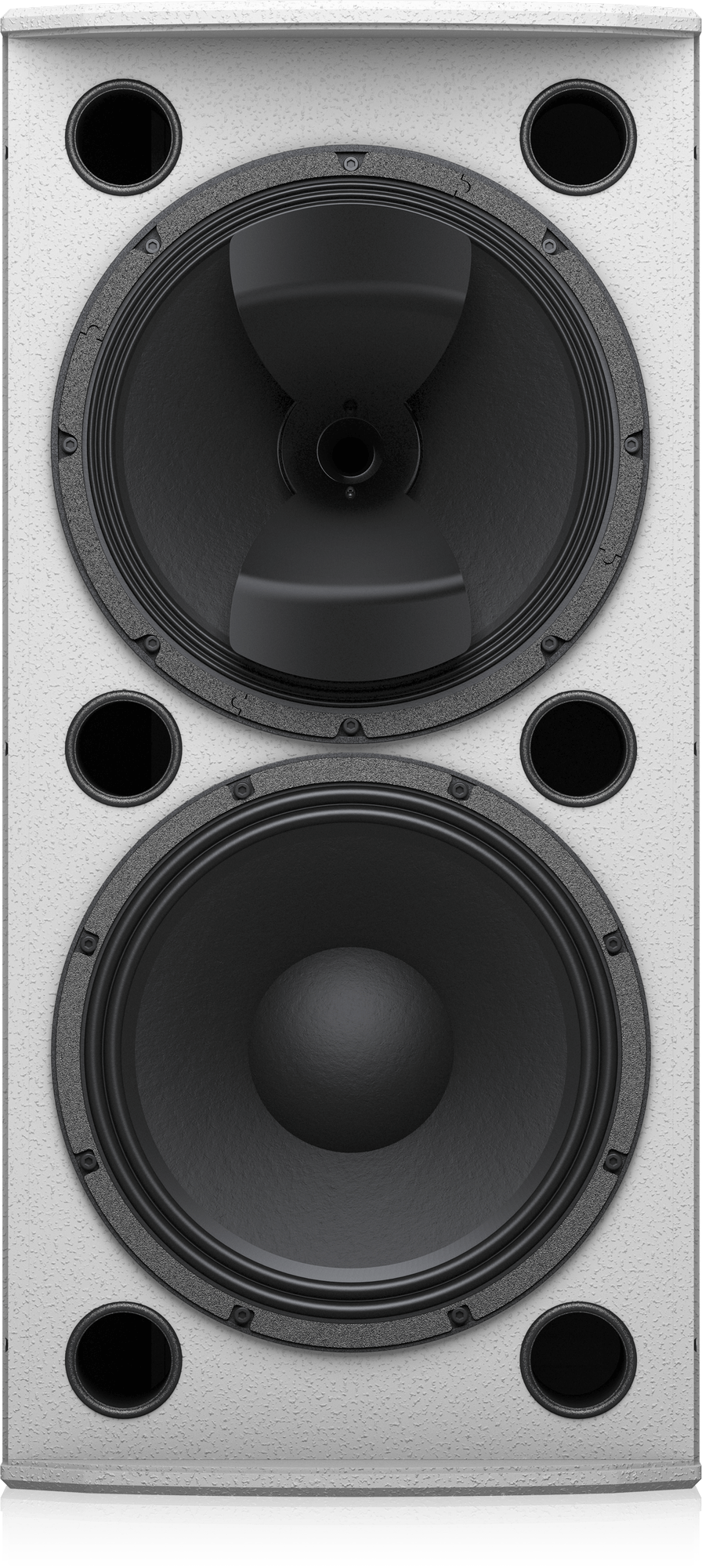

The 2,000-Watt 305 mm (12") version of TANNOY’s VX Series exclusive point source loudspeakers, VX 12.2Q-WH’s PowerDual driver ensures high power output with high sensitivity and exceptional efficiency. A proprietary Q-Centric waveguide is provided for tighter pattern control, delivering precise 75º horizontal x 40º vertical dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration. An additional 305 mm (12") low frequency driver is employed to provide extended bass response.

Performance Applications

VX 12.2Q-WH’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omnimount for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.

Construction

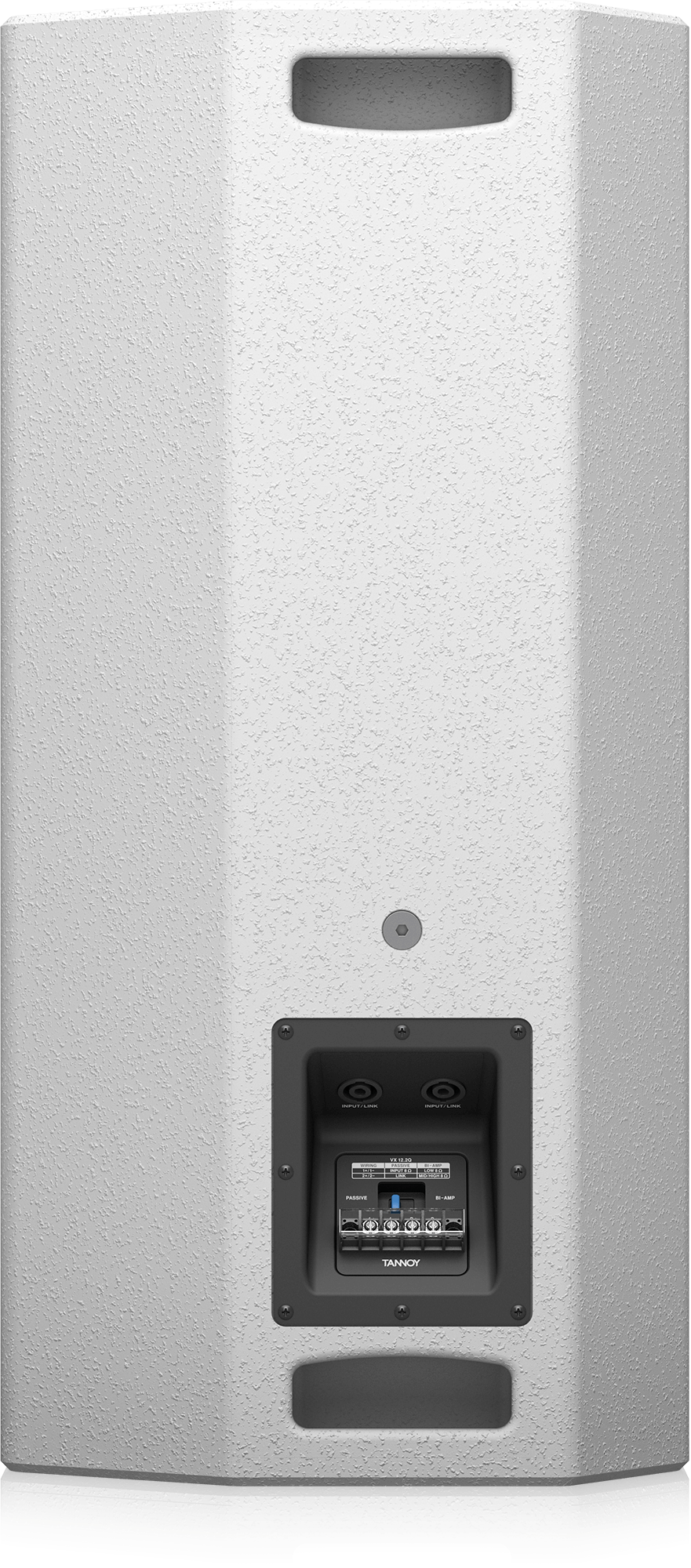

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from a combination of 15 mm (⅝") and 18 mm (¾") plywood – and includes a rugged powder coated perforated steel mesh grille. Integrip handles ergonomically integrated into the top and bottom of cabinet make for easy transport. The rear panel connector plate carries industry-standard twist-locking speaker and barrier strip connectors for input and link connections to additional enclosures. VX 12.2Q-WH loudspeakers are optimized for use with Lab Gruppen amplifiers, or Lake LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.
