VX 15HP

The VX 15HP is built around a single 380 mm (15") PowerDual driver mounted within a compact, rugged plywood cabinet, and renowned for its exceptional performance and versatility. The latest high powerhandling version of TANNOY’s exclusive point source, constant directivity PowerDual technology ensures high power output with high sensitivity and exceptional efficiency. The point source driver technology allows this unique configuration to deliver exceptionally smooth beam-width characteristics resulting in an even coverage pattern aiding predictable system design. Symmetrical dispersion characteristics enhance speaker placement flexibility, allowing vertical or horizontal mounting of single or multi-cabinet arrays without any compromise in sound quality. The VX 15HP is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 15HP can also be configured for bi-amp operation.

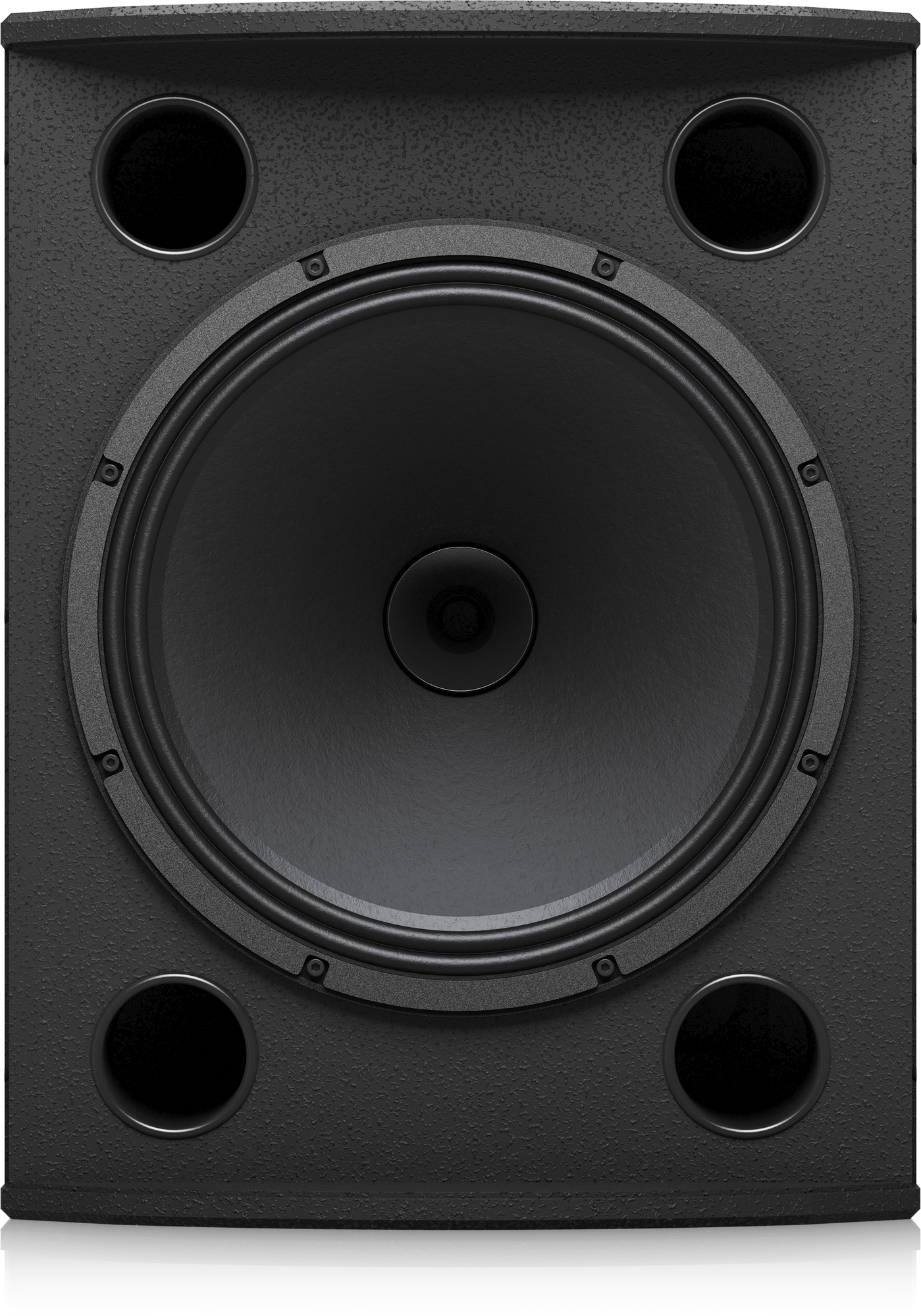

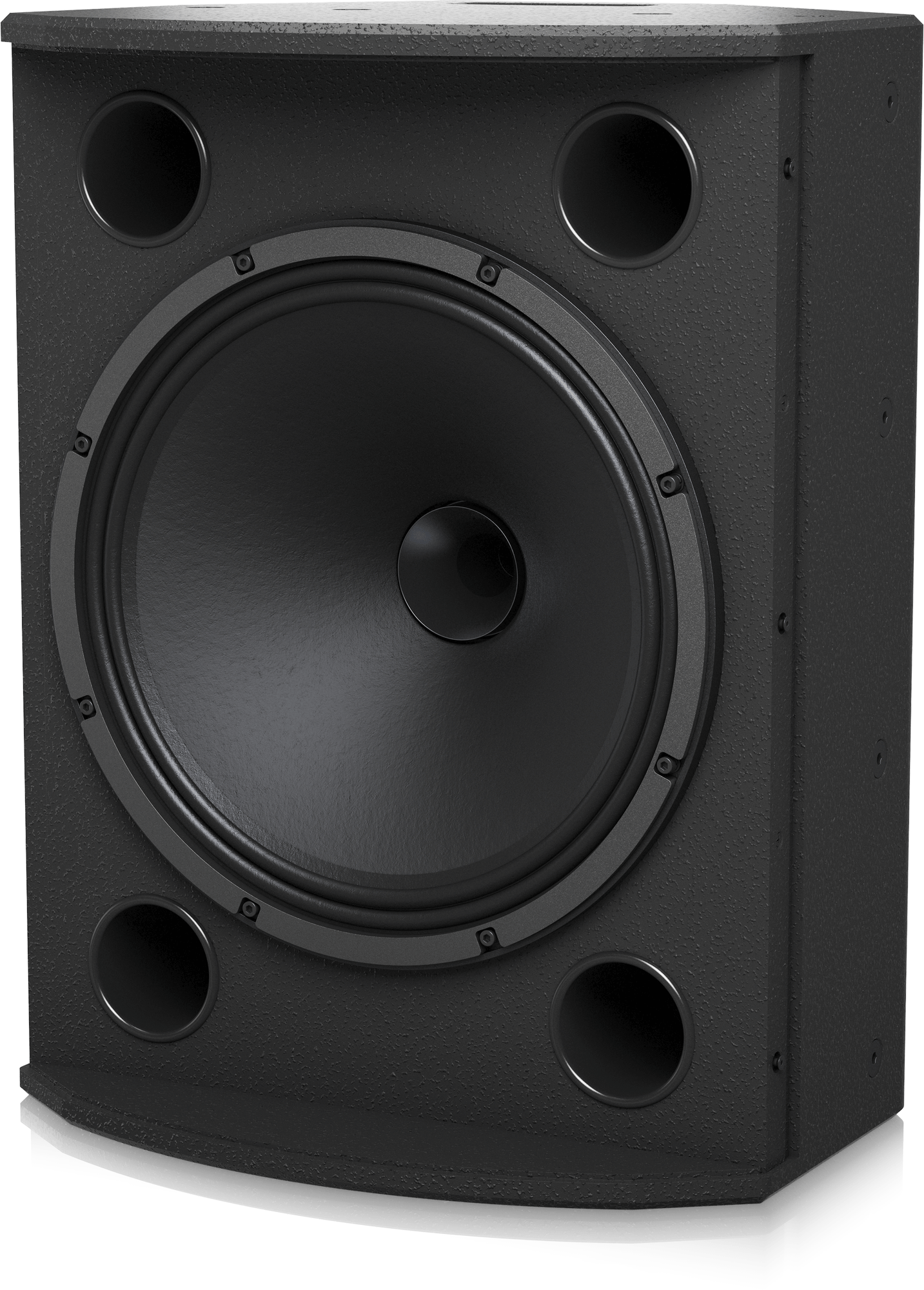

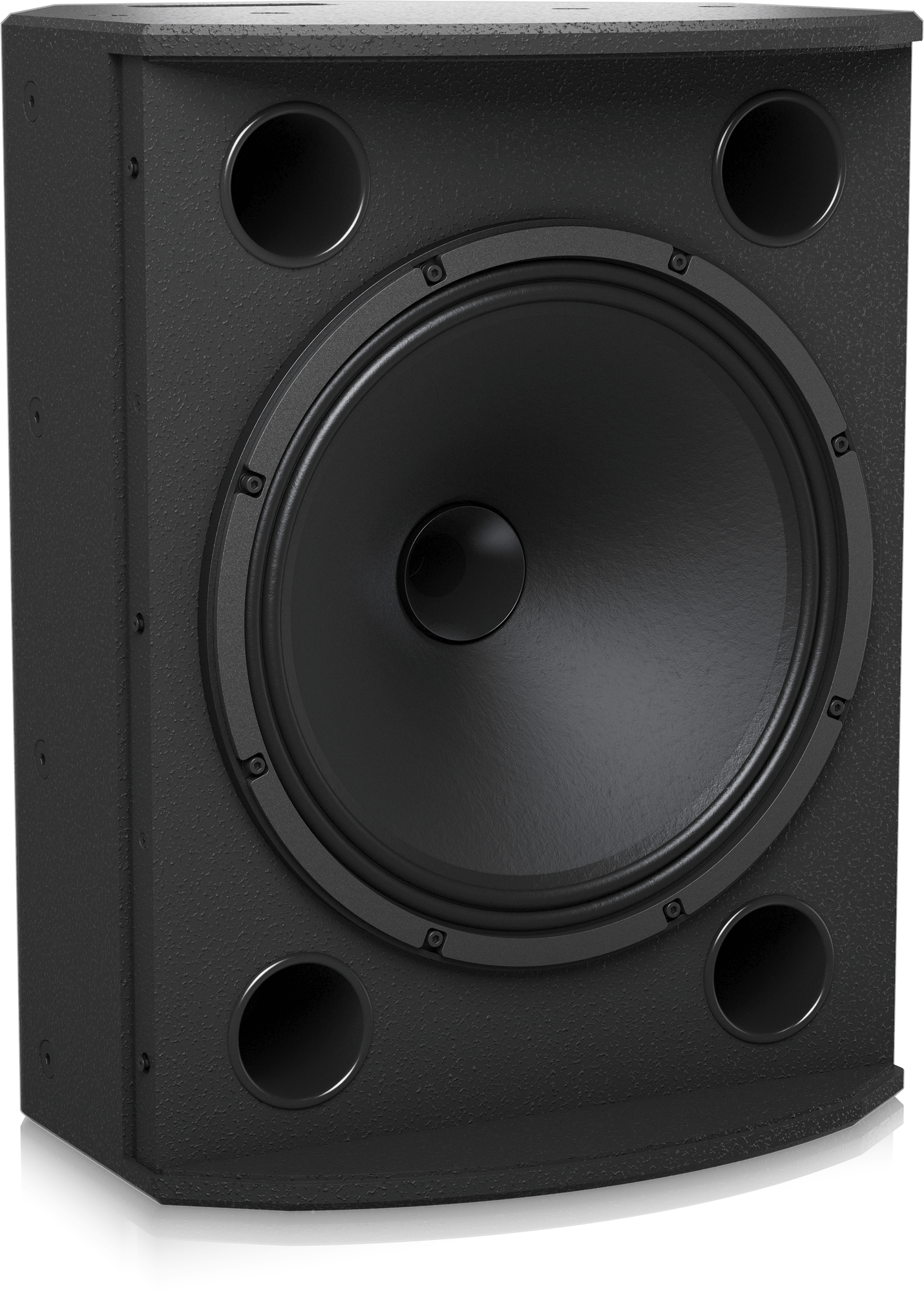

PowerDual Driver

he 1,600-Watt 380 mm (15 ") version of TANNOY ’s VX Series exclusive point source loudspeakers, VX 15HP’s PowerDual driver ensures high power output with high sensitivity and exceptional efficiency. VX 15HP delivers precise 75º dispersion for optimum coverage, exceptional forward gain.

Performance Applications

VX 15HP’s trapezoidal enclosure design provides a multitude of placement options including: installed performance sound reinforcement, FOH, floor monitor, high SPL delay, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), and 8 M10 Flying inserts. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.

Construction

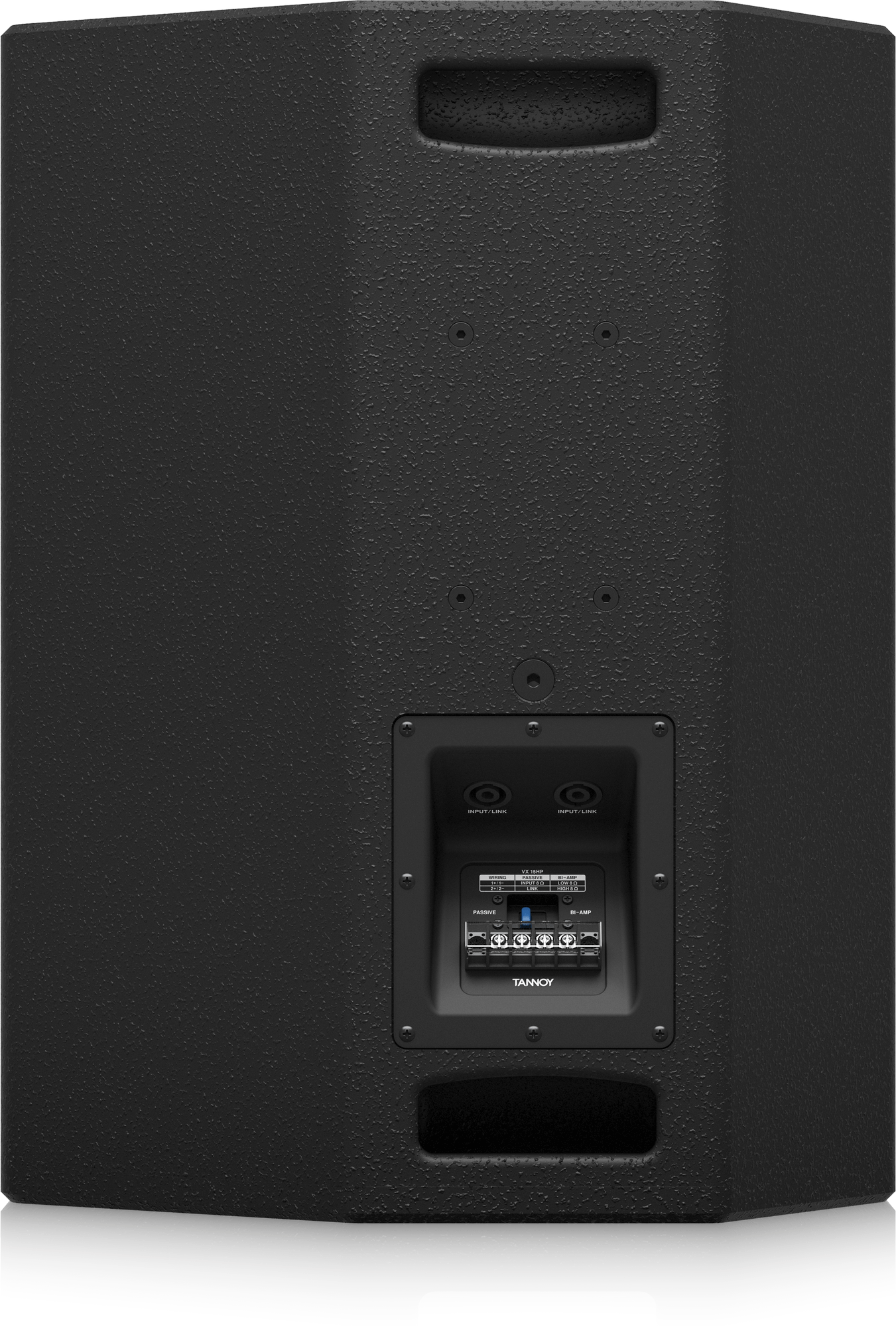

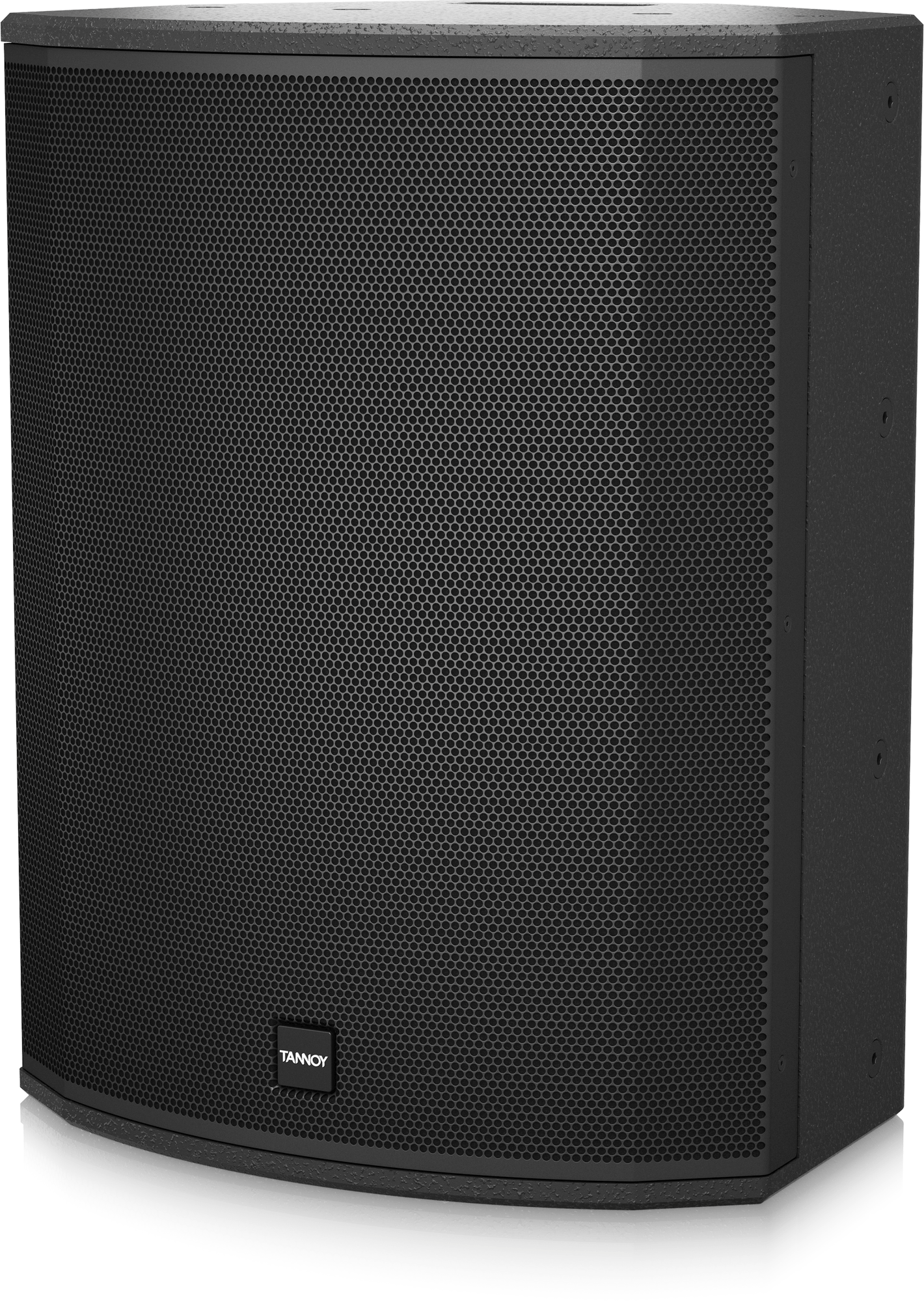

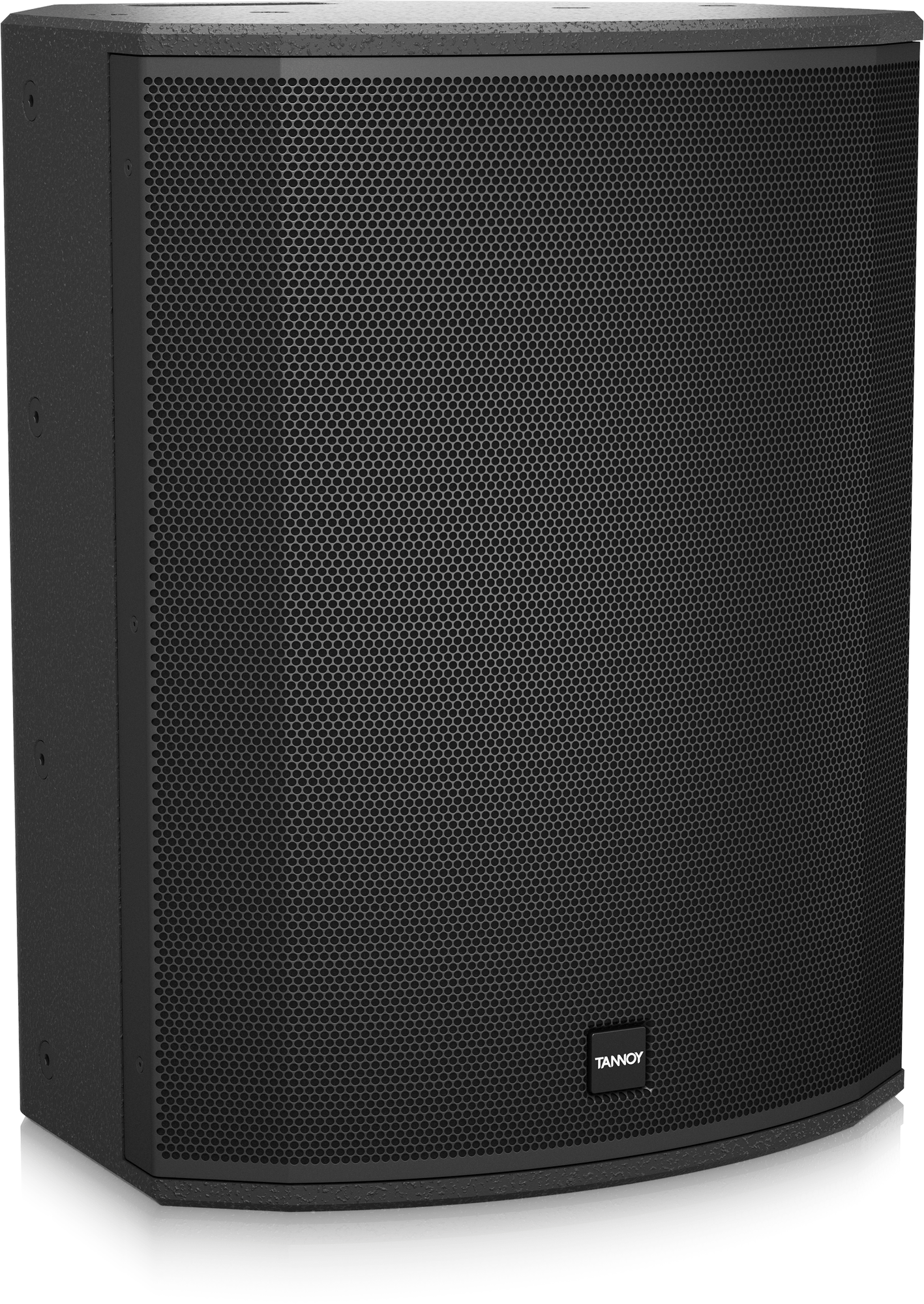

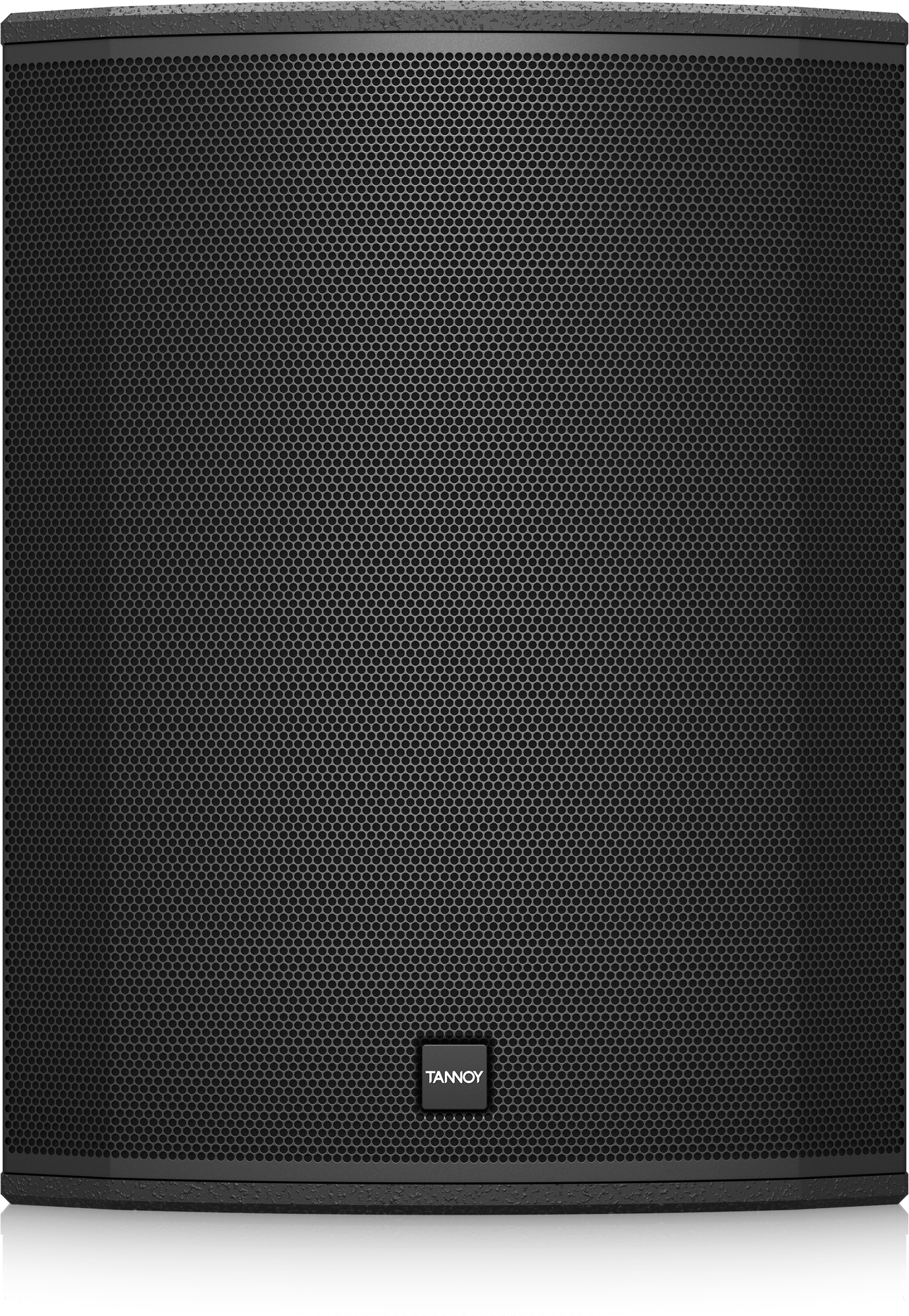

Finished in a hard wearing semi matt black paint, the vented and internally braced cabinet is constructed from 18 mm (¾") plywood – and includes a rugged powder coated perforated steel mesh grille. Integrip handles ergonomically integrated into the top and bottom of cabinet make for easy transport. The rear panel connector plate carries industry-standard twist-locking speaker and barrier strip connectors for input and link connections to additional enclosures. VX 15HP loudspeakers are optimized for use with Lab Gruppen amplifiers, or Lake LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.
