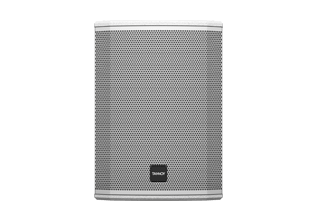

VX 8-WH

The VX 8-WH may be one of the smaller Dual Concentric full range loudspeakers in the VX range, but it boasts an exceptional performance-to-size ratio. VX 8-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VX 8-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

Dual Concentric Driver

The 520-Watt 200 mm (8") version of TANNOY’s VX Series exclusive point source loudspeakers, VX 8-WH’s constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VX 8-WH delivers precise 90º dispersion for optimum coverage, exceptional forward gain.

Performance Applications

VX 8-WH’s trapezoidal enclosure design provides a multitude of placement options including: small scale FOH, floor monitor, delay and stage front fill deployment, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. An extensive range of optional VX 8-WH high performance steel mounting hardware (available separately) includes a horizontal yoke bracket, and Omnimount spaced inserts for wall and ceiling installation. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.

Construction

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from 15 mm (⅝") plywood – and includes a rugged powder coated perforated steel mesh grille. Integrip handles ergonomically integrated into the top and bottom of cabinet make for easy transport. The rear panel connector plate carries industry-standard twist-locking speaker and barrier strip connectors for input and link connections to additional enclosures. VX 8-WH loudspeakers are optimized for use with Lab Gruppen amplifiers, or Lake LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.
