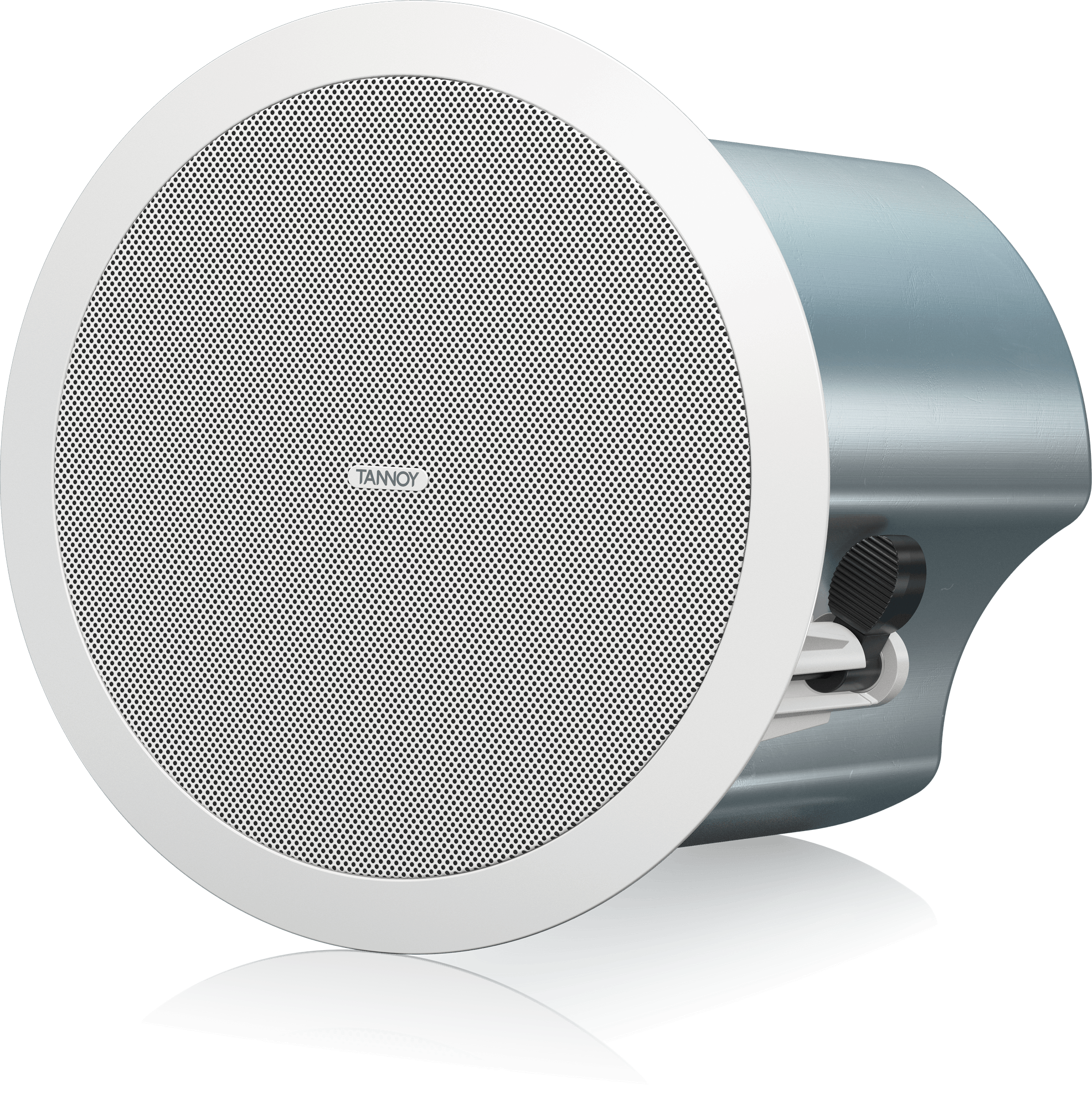

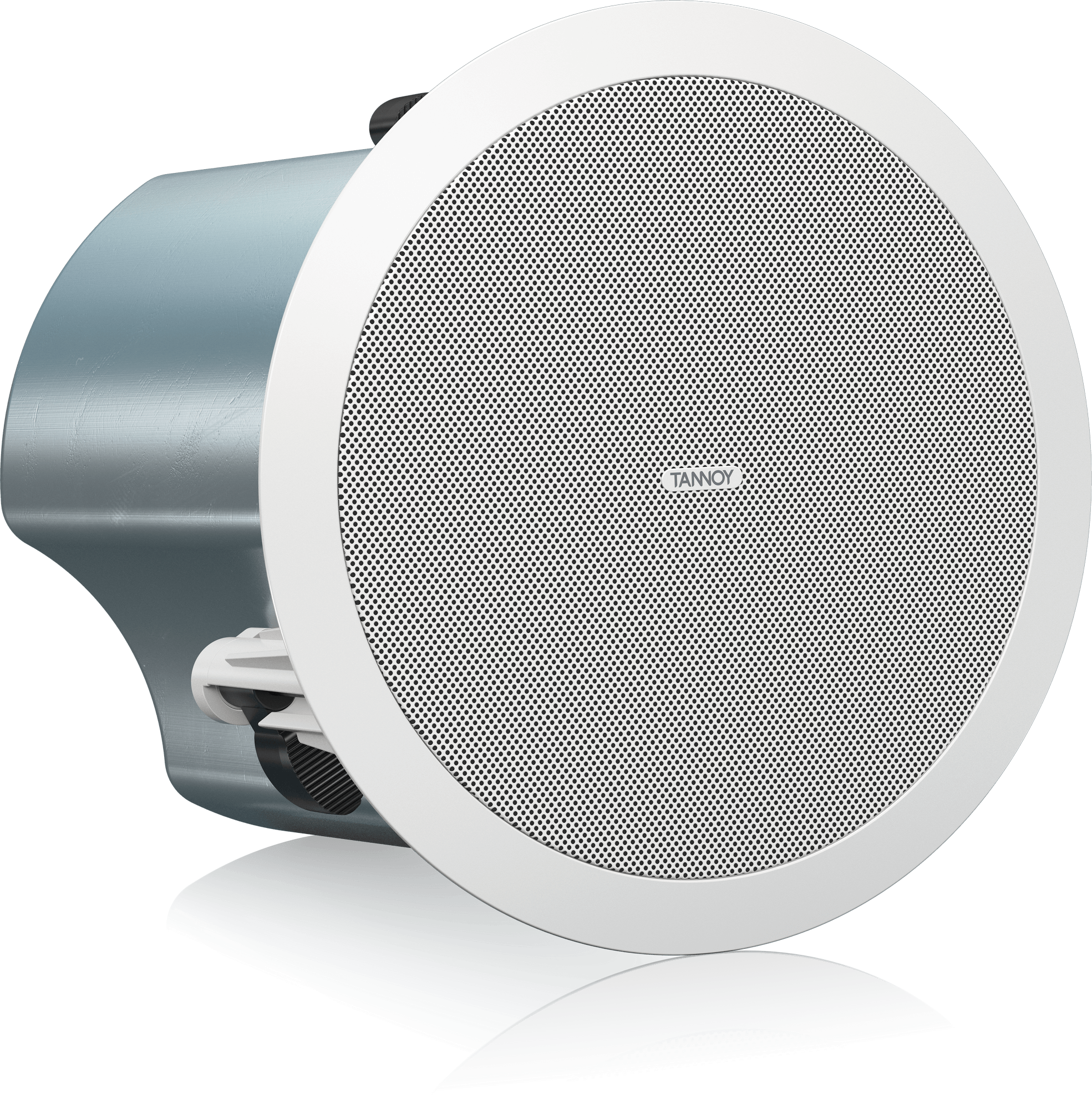

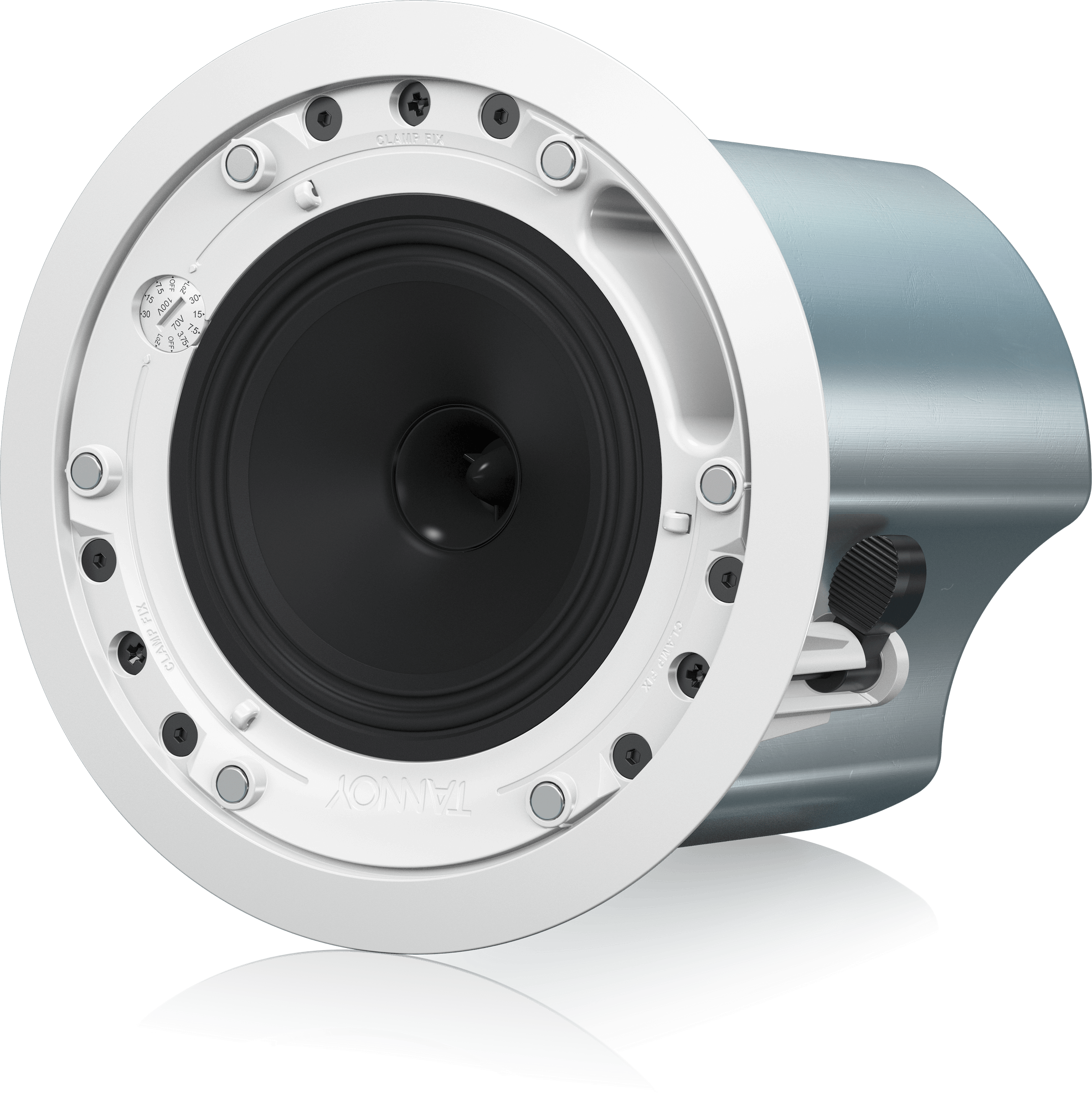

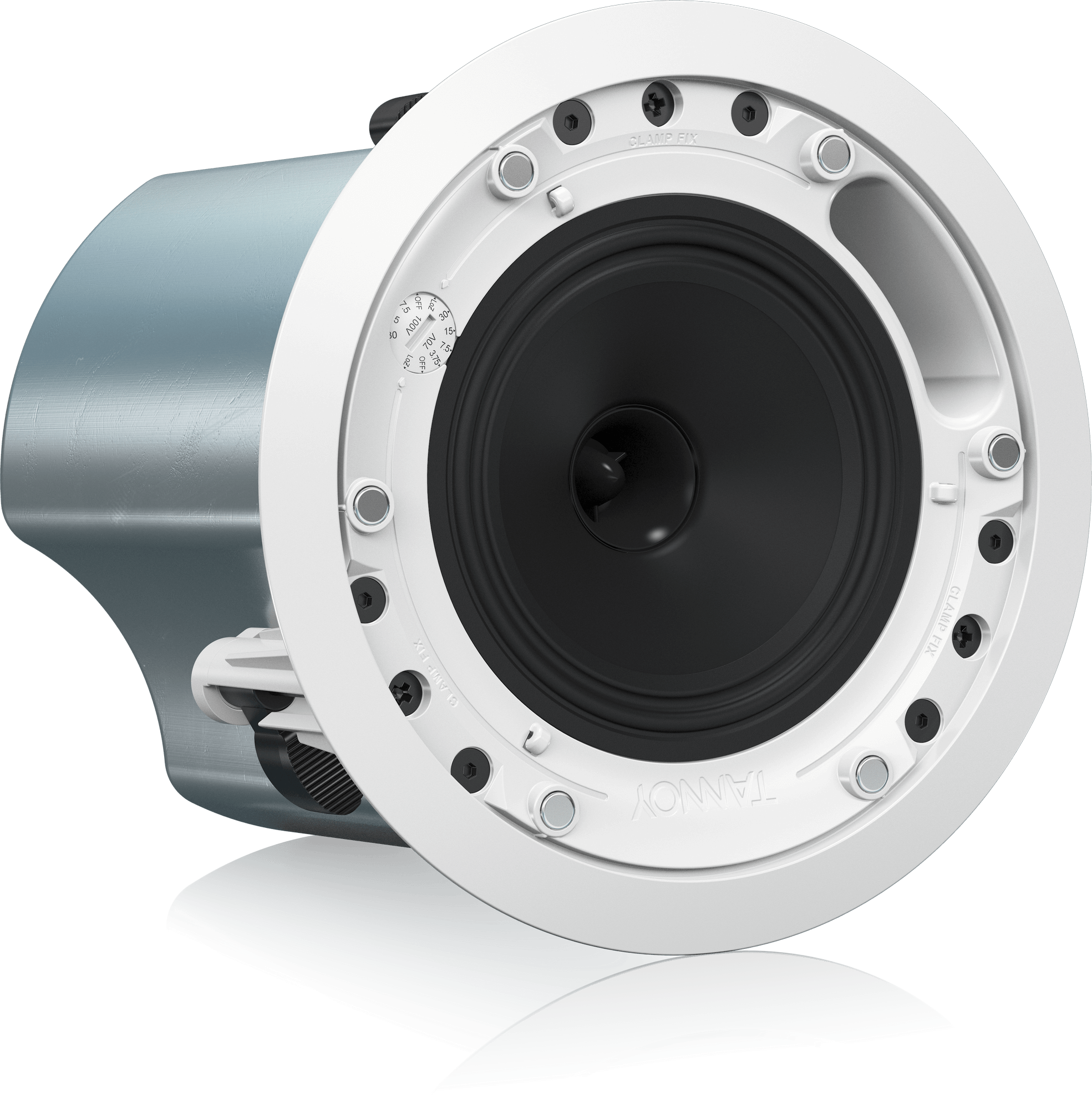

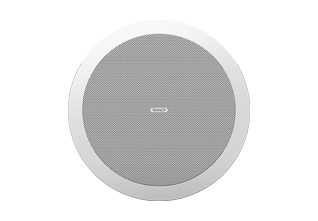

CMS 3.0 CMS 503DC BM

The CMS 503DC BM is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC BM delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Optimised for Installation

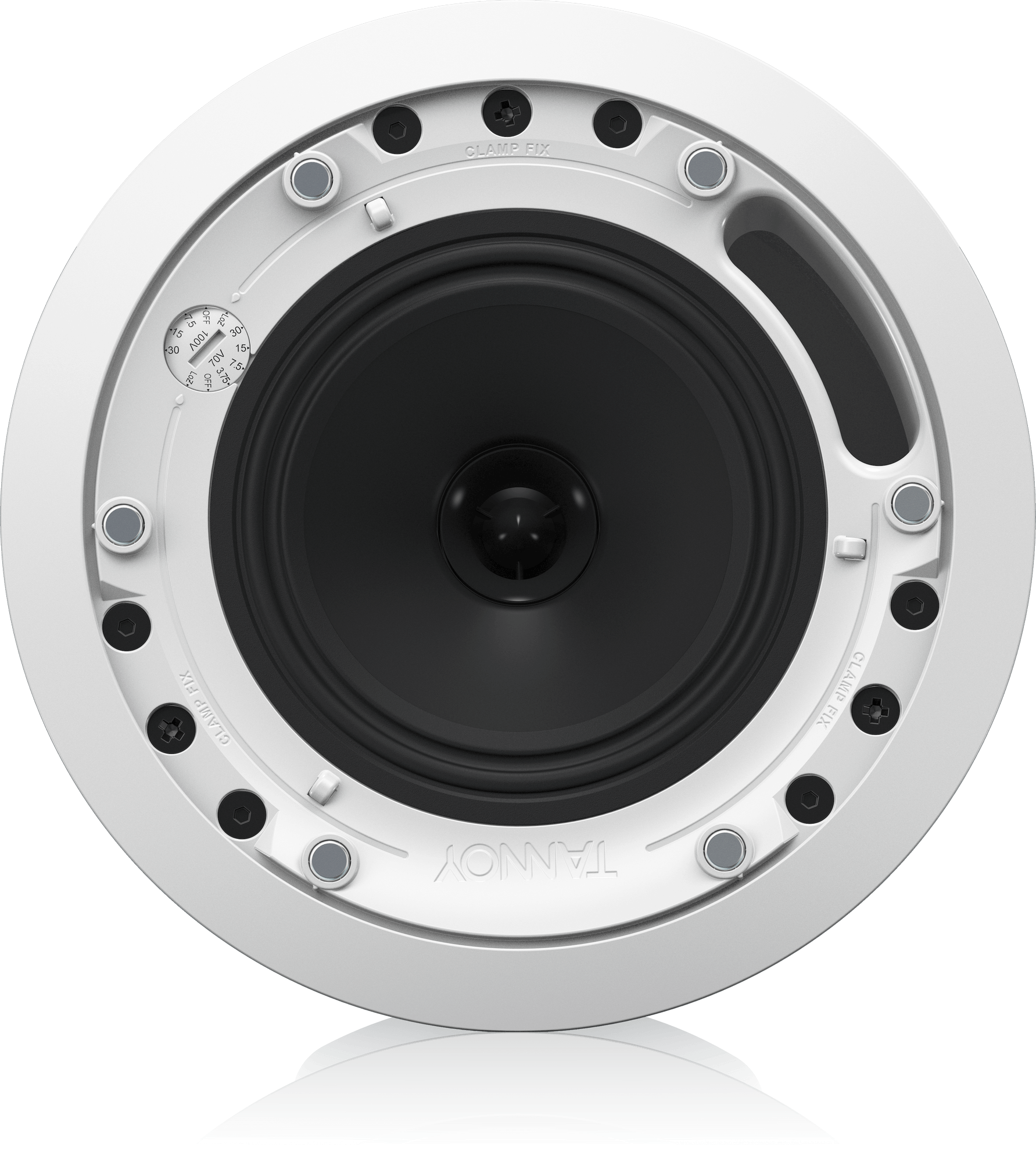

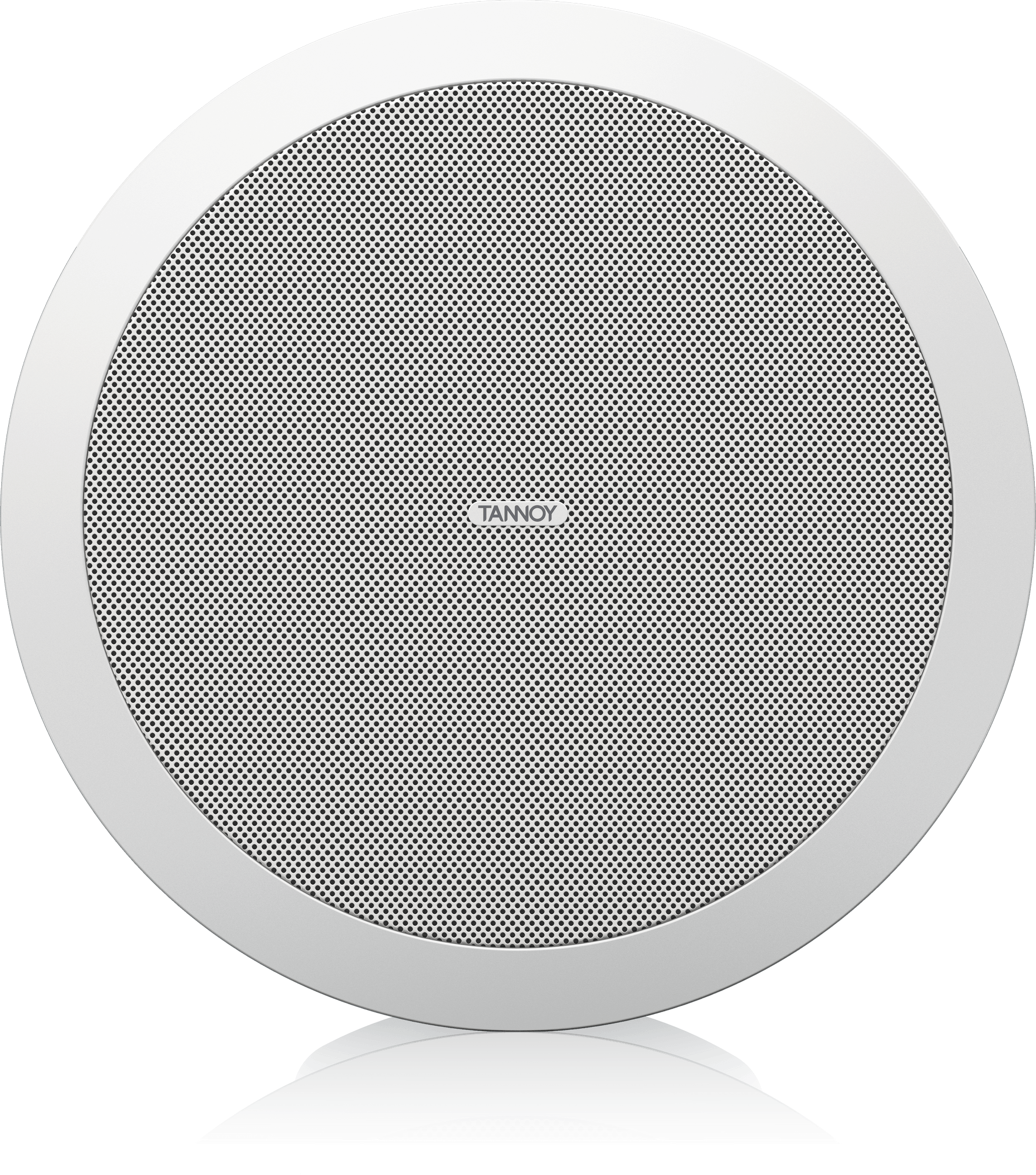

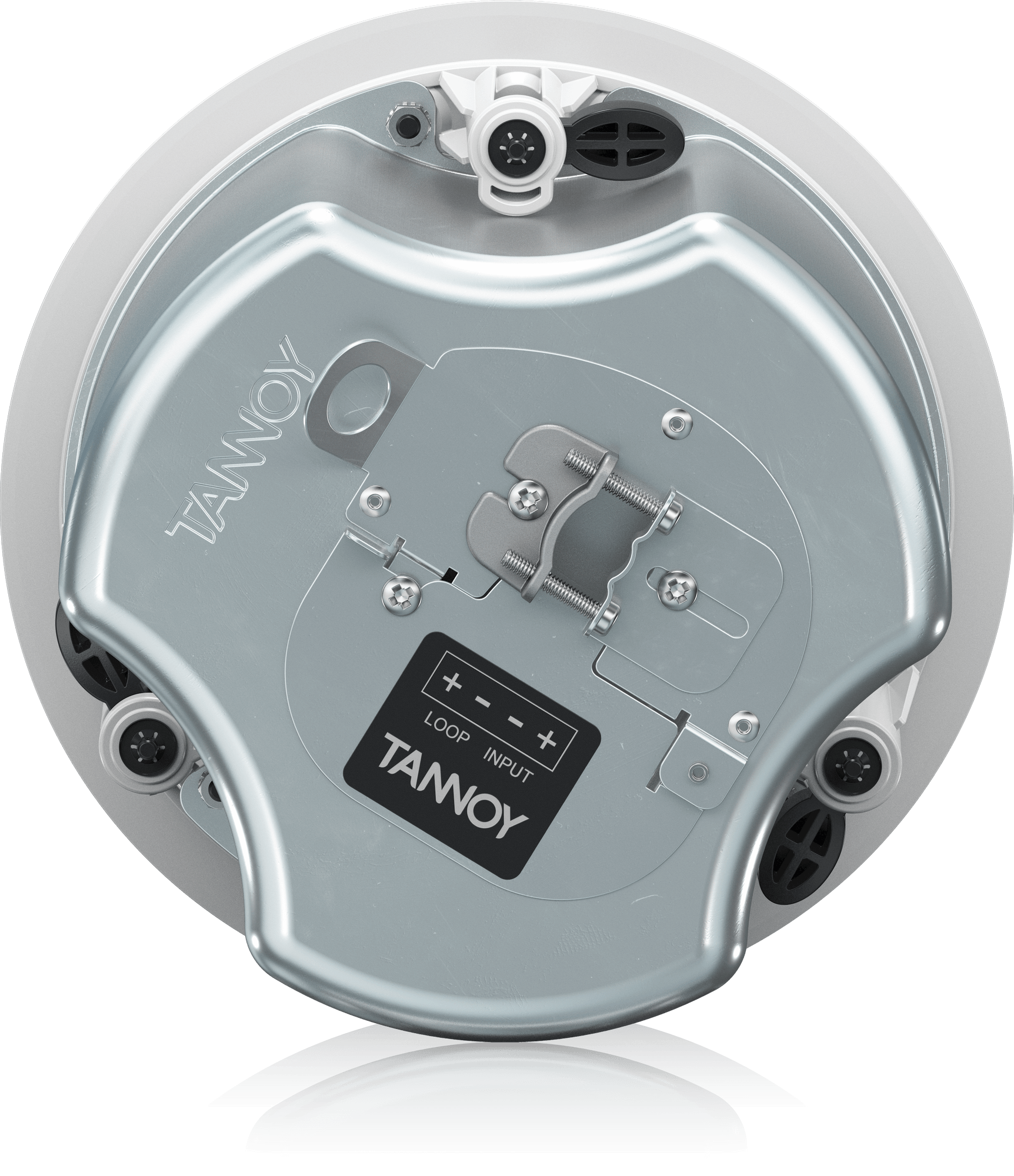

Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, CMS 503DC BM features an acoustically enhanced zinc plated steel back can with removable locking screw terminal connector and loop-thru functionality. A low insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.

LAB GRUPPEN Ready

The CMS 503DC BM is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
